Jeep Wrangler: Lowering The Soft Top Into Sunrider® Position / Removing The Soft Top Windows

NOTE:

Before fully lowering the soft top, the rear window and rear quarter windows must be removed.

Remove The Rear Window:

  1. With the swing gate open, remove the rear window’s plastic retainers from the lower right and left corners.

    Jeep Wrangler. Removing The Soft Top Windows

    Step One

  2. Grab the swing gate bar, rotate it outward and upward releasing it from both the right and left retainers.

    Jeep Wrangler. Removing The Soft Top Windows

    Step Two (Left Side Shown)

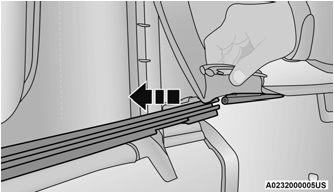

  3. While holding the window in place, slide the swing gate bar to the left separating it from the rear window. Store in soft window bag (if equipped), or a safe location.

    Jeep Wrangler. Removing The Soft Top Windows

    Step Three

  4.  Remove the plastic retainers from both quarter window pillars.

    Jeep Wrangler. Removing The Soft Top Windows

    Step Four

  5. While keeping the rear window level, slide to the left until it is completely separate from its retainer. Do not pull downward while removing the rear window. Damage to the retainer could result.

    Jeep Wrangler. Removing The Soft Top Windows

    Step Five

    Lowering The Soft Top Into Sunrider® Position

    Fold both sun visors forward against the windshield. Release the header latches from the crossbar by pulling the handle downward. Make sure the hook is disengaged from its receiver...

    Remove The Right And Left Quarter Windows:

    Through the rear opening, push the bottom corner outward and release tab from the bottom of the window pillar. Step One Undo the hook-and-loop fastener located at the upper front corner of each quarter window...
