Jeep Wrangler: Adaptive Cruise Control (ACC) — If Equipped / Setting The Following Distance In ACC

The specified following distance for ACC can be set by varying the distance setting between four bars (longest), three bars (long), two bars (medium) and one bar (short). Using this distance setting and the vehicle speed, ACC calculates and sets the distance to the vehicle ahead. This distance setting displays in the instrument cluster display.

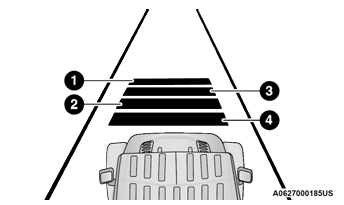

Jeep Wrangler. Setting The Following Distance In ACC

Distance Settings

  1. Longest Distance Setting (Four Bars)
  2. Medium Distance Setting (Two Bars)
  3. Long Distance Setting (Three Bars)
  4. Short Distance Setting (One Bar)

To increase the distance setting, push the Distance Setting Increase button and release. Each time the button is pushed, the distance setting increases by one bar (longer).

To decrease the distance setting, push the Distance Setting Decrease button and release. Each time the button is pushed, the distance setting decreases by one bar (shorter).

If there is no vehicle ahead, the vehicle will maintain the set speed. If a slower moving vehicle is detected in the same lane, the instrument cluster displays the ACC Set With Target Light. The system will then adjust vehicle speed automatically to maintain the distance setting, regardless of the set speed.

The vehicle will then maintain the set distance until:

  • The vehicle ahead accelerates to a speed above the set speed
  • The vehicle ahead moves out of your lane or view of the sensor
  • The distance setting is changed
  • The system disengages

The maximum braking applied by ACC is limited; however, the driver can always apply the brakes manually, if necessary.


The brake lights will illuminate whenever the ACC system applies the brakes.

A Proximity Warning will alert the driver if ACC predicts that its maximum braking level is not sufficient to maintain the set distance. If this occurs, a visual alert “BRAKE!” will flash in the instrument cluster display and a chime will sound while ACC continues to apply its maximum braking capacity.


The “BRAKE!” screen in the instrument cluster display is a warning for the driver to take action and does not necessarily mean that the Forward Collision Warning system is applying the brakes autonomously.

Overtake Aid

When driving with ACC engaged and following a vehicle, the system will provide an additional acceleration up to the ACC set speed to assist in passing the vehicle. This additional acceleration is triggered when the driver utilizes the left turn signal and will only be active when passing on the left hand side.

    To Vary The Speed Setting

    To Increase Or Decrease The Set Speed After setting a speed, you can increase the set speed by pushing the SET (+) button, or decrease speed by pushing the SET (-) button...

    ACC Operation At A Stop (Automatic Transmission Only)

    In the event that the ACC system brings your vehicle to a standstill while following a vehicle ahead, your vehicle will resume motion, without any driver interaction, if the vehicle ahead starts moving within two seconds of your vehicle coming to a standstill...
